3051X Pressure Sensor
The core sensor is high precision monosilicon technology with 3051X, it can be built-in static pressure and temperature compensation
Advantage
• Three-diaphragm overload structure(≤3M Pa)
No overload protection diaphragm
• High long term stability <±0.05%F.S./year.
• Extremely low pressure and temperature hysteresis.
• Built-in temperature sensitive element.
• Various of isolating diaphragm to meet a wide range of anti-corrosion requirements.
• Rugged construction with little effect of repackaging stress.
Features
• Differential pressure range: 0-60mbar…10bar
• Power supply: 2.5-5VDC
• Electrical connection: 100mm silicone rubber soft wire
• Common mode voltage output: 50% of input(typical)
• Mechanical connection for housing: M27×2(M), 2 3/16-16 UNS, M56×1.5(M), M45x1 .5(M)
• Response time(10%-90% ): <2ms
• Working temperature: -40℃~ +85℃
• Temperature effect on zero: ±0.05% F.S./℃
• Diaphragm material: SUS316L/ hastelloy C
• Long term drift: <±0.05% F.S./year
• Pressure hysteresis: <±0.05% F.S.
Industry application
• Process control
• Environmental control
• Flow control
Related products
-
The non-inductive linkage synchronously connects to the 0.1 alcohol detector, and synchronously uploads the data to the drunk driving management platform
-
Auto sample dilution, auto acid-adding and auto gas purging (TOC-5000 RD)METASH unique NDIR detector, German made light source, higher sensitivity and stability, longer service time.
-
Up to 40 Vessels, suitable for batch experiment. Auto vent and self-resealing vessel ensures higher safety and less element loss. Contactless Temperature and Pressure Monitoring System.
-
Support personalized product customization
-

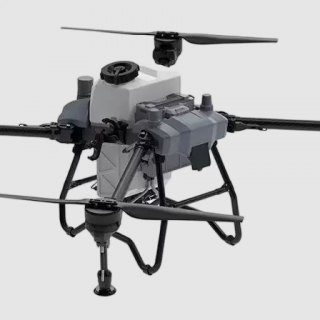

The Agricultural Plant Protection Drone M50 is a high-efficiency UAV designed for modern farming. With a 50kg payload and intelligent spraying system, it ensures precise and effortless crop protection
