Automatic Grading Machine
Automatic grading machine is used for grading the PV modules. it has the following advantages
https://www.calowenauto.com/automatic-grading-machine.html
Description

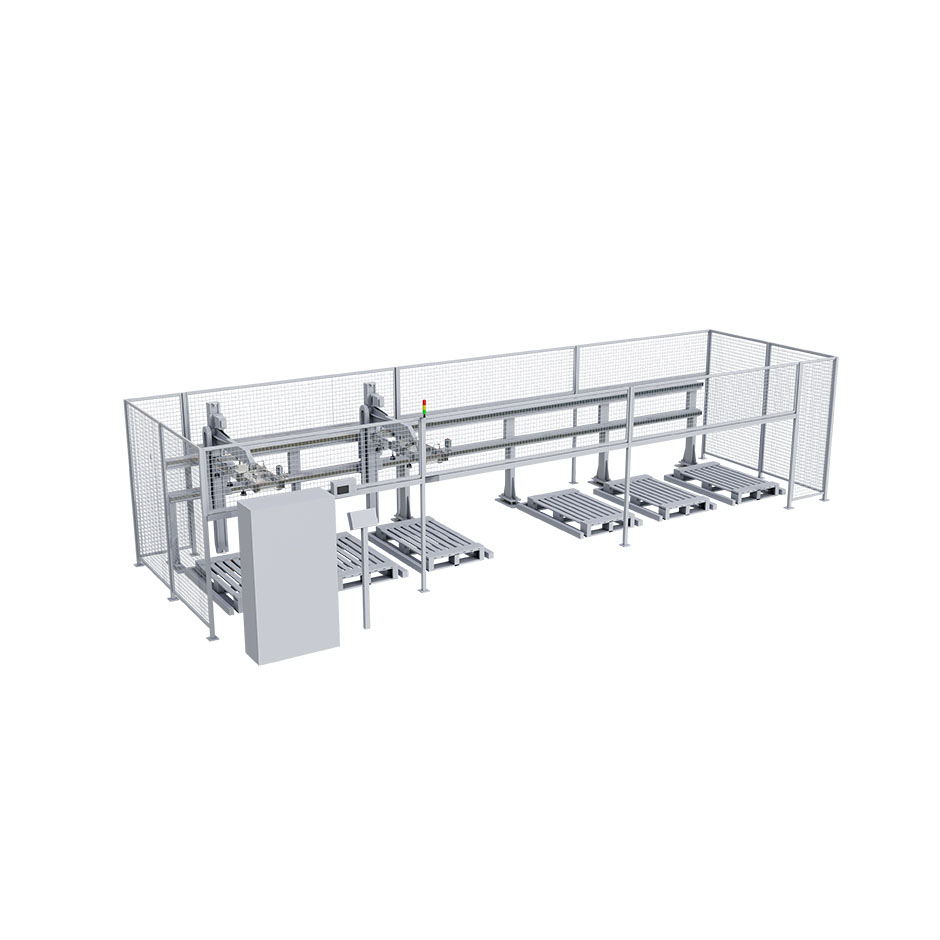

Solar panel production line automatic grading machine is used for grading the
PV modules. it has the following advantages:
A: Special mechanical structure to grab the module stable without
vibration.
B: Driven by Servo motor, high speed, high precision.
C: Compatible with conventional and double glass modules.
Products Specification
|
No. |
Items |
Descriptions |
|
1 |
Machine model |
CLW-AG-01 |
|
2 |
Protection Method |
Safety protection and safety marks |
|
3 |
Transfer mode |
Gear and rack |
|
4 |
Height |
950mm±50mm |
|
5 |
Working speed |
≤25s |
|
6 |
Power supply |
AC380V, 5060HZ, DC24V |
|
7 |
Power(Kw) |
6 |
|
8 |
Laying accuracy |
±1mm |
|
9 |
Working air pressure |
0.6~0.8Mpa |
|
10 |
Working environment |
≤85%RH |
|
11 |
Working noise |
≤60db |
|
12 |
Main body of machine |
Steel frame |
|
13 |
Dimension (L*W*H) |
Customized |
|
14 |
Utilization rate |
Uptime≥99% |
