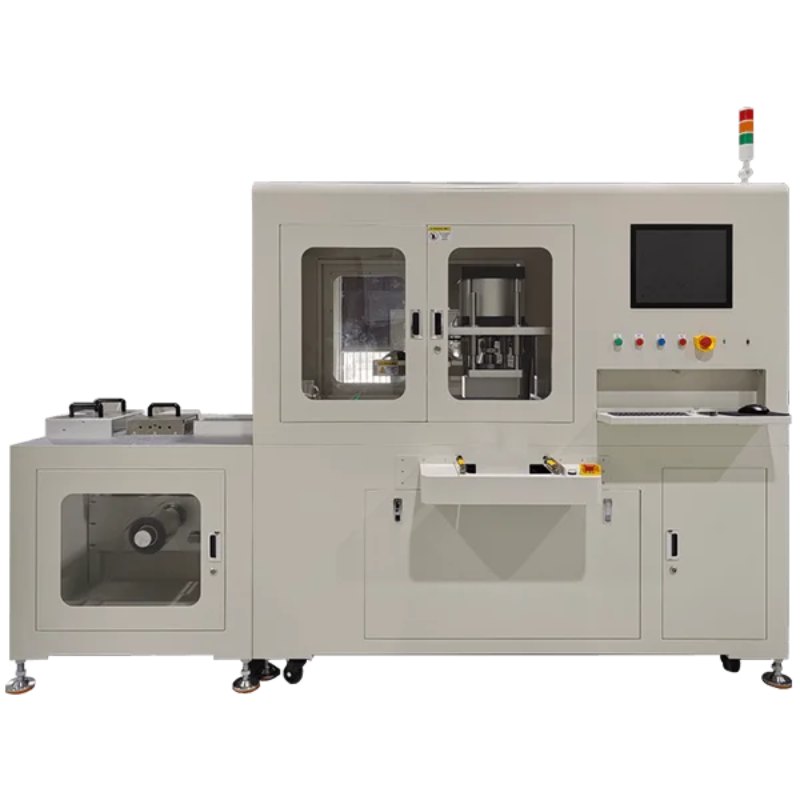

Automated Thermoforming Machine for Dental Aligner

Product Overview

The Automated Thermoforming Machine for Dental Aligner is designed for the thermoforming stage of clear aligner manufacturing. It heats and softens dental film before applying controlled pressure to form the material over 3D-printed dental models, creating clear aligner prototypes with consistent shaping and fit.

Equipped with programmable temperature control, precision sensors, automated roll-film feeding, and mechanical motion control, the machine helps improve production consistency and reduce manual intervention. Its integrated dehumidification function helps reduce the risk of moisture-related bubbles during forming, supporting better aligner quality.

Manufactured by ConverSight, a specialist in intelligent dental equipment with over 10 years of industry experience, this machine features a modular design that supports standalone operation or integration into a complete automated clear aligner production line. It is suitable for dental laboratories and orthodontic manufacturers seeking to improve processing efficiency and expand production capacity.

Key Product Advantages

1. Precision Pressure Thermoforming

• Uses pressure thermoforming to shape dental film over 3D-printed dental models.

• Programmable temperature control supports consistent film heating and softening.

• High-precision temperature sensors help maintain the required heating profile.

• Controlled forming conditions help improve the consistency of aligner thickness and model fit.

2. Automated Roll-Film Feeding

• Supports automated feeding of roll-film materials.

• Helps reduce repetitive manual film-handling tasks.

• An automatic dehumidifier helps reduce the risk of bubbles caused by moisture during the forming process.

• Roll-film processing supports more continuous production workflows.

3. Rapid Forming Cycle

• Designed to process two pieces per cycle in approximately 30 seconds.

• Supports faster prototype production for dental laboratories and aligner manufacturers.

• Helps improve equipment utilization and production workflow efficiency.

• Actual output may vary depending on materials, operating conditions, and process settings.

4. Consistent Aligner Quality

• Precision temperature control supports repeatable material heating.

• Controlled mechanical movement helps maintain forming accuracy.

• Designed to support consistent adaptation of the formed film to dental models.

• Helps manufacturers reduce process variation and improve batch-to-batch consistency.

5. Modular Design for Flexible Production

• Can operate as an independent thermoforming machine.

• Can be integrated with compatible equipment into a complete clear aligner production line.

• Supports flexible production configurations based on facility layout and manufacturing requirements.

• Suitable for businesses looking to expand automation in stages.

6. Flexible Film Compatibility

• Designed for dental thermoforming films in compatible roll formats.

• Supports film widths from 100 to 137 mm.

• Film compatibility should be confirmed according to material type, thickness, roll dimensions, and process requirements.

• Custom testing with customer-supplied materials can help verify suitability before production deployment.

Technical Specifications

Note: Confirm the applicable molding temperature range, heating performance, film specifications, and production conditions with the supplier before ordering. Actual performance depends on the selected material and process configuration.

Applications

The Automated Thermoforming Machine for Dental Aligner is designed for the thermoforming stage of digital clear aligner production and can be used in:

• Clear aligner manufacturing facilities

• Dental laboratories producing orthodontic appliances

• Digital orthodontic production centers

• Dental appliance manufacturers

• Automated clear aligner production lines

• Dental businesses upgrading from manual to automated thermoforming

Clear Aligner Production Workflow

The machine can be incorporated into a digital manufacturing workflow that typically includes:

1. Digital Treatment Planning: Prepare the orthodontic treatment plan and corresponding tooth models using compatible dental software.

2. 3D Model Production: Print the required dental models using a compatible 3D printing process.

3. Film Feeding and Preparation: Load compatible dental film and configure the forming parameters.

4. Heating and Thermoforming: Heat and soften the film before forming it over the dental model.

5. Downstream Processing: Transfer the formed aligner for trimming, finishing, identification, and inspection as required.

6. Quality Inspection: Check fit, appearance, and relevant product quality requirements before subsequent processing or release.

The thermoforming machine handles the forming stage; additional equipment is required for other production steps unless supplied as part of an integrated solution.

Customization and Production-Line Integration

ConverSight supports customized equipment development based on customer requirements, including compatible film specifications, dental model samples, and production-line configuration.

Available project support may include:

• Evaluation of customer-provided dental films and tooth models

• Sample testing before equipment confirmation

• Standalone machine configuration

• Integration with compatible automated feeding, trimming, marking, and inspection equipment

• Production-line planning according to factory layout and capacity requirements

For a complete automated clear aligner solution, the thermoforming machine can be considered alongside compatible digital trimming machines, laser marking equipment, model identification systems, and other processing equipment.

Why Choose ConverSight?

ConverSight specializes in intelligent manufacturing equipment for the clear aligner industry, combining automation, machine vision, robotics, and modular equipment design.

• Industry Experience: More than 10 years of experience in intelligent dental equipment.

• Technical Development: 40+ patented technologies and 10 software intellectual property rights, as reported by the company.

• Manufacturing Network: 4+ R&D and manufacturing bases.

• International Delivery: Equipment delivered to customers in 20+ countries.

• Project Experience: 100+ automated projects delivered.

• Flexible Solutions: Equipment options for standalone use and integrated production lines.

• Customization Support: Development and sample testing based on customer requirements.

• Production Planning: Complete production-line lead time is typically quoted at 30–45 days, subject to configuration and order confirmation.

These capabilities help dental manufacturers evaluate practical automation options according to their production volume, facility conditions, and processing requirements.

Ordering Information

• Product: Automated Thermoforming Machine for Dental Aligner

• Brand: ConverSight

• Minimum Order Quantity: 1 unit

• Power Supply: 220 V AC

• Forming Capacity: 2 pieces per cycle, approximately 30 seconds

• Customization: Available subject to technical evaluation

• Integration: Standalone operation or compatible production-line integration

When requesting a quotation, please provide your target production capacity, dental film material and dimensions, dental model specifications, available factory utilities, and whether you require a standalone machine or a complete production line.

For technical details, compatibility assessment, sample testing, and pricing, contact the ConverSight team at info@conversighttech.com.

Choose the Automated Thermoforming Machine for Dental Aligner to support a more consistent and efficient thermoforming process for digital orthodontic manufacturing.
